Need an HDMI RF Modulator? Want to know which one, and which are the best? We’ve got your back with this detailed yet accessible guide. An HDMI RF modulator is a device that converts digital signals from an HD source (like a DVD player or game console) into an RF signal that will work with displays (such as TVs or monitors) with rf inputs. In this guide we get right to the meat of HDMI to RF modulators: the basics of how they work, the different types of hdmi rf modulators and the pros and cons of each, and finally narrow the many options down to a manageable handful of the Best HDMI RF Modulators.

In the constantly-shifting terrain of technological innovation, it seems as if a new compatibility issue is born every day. Connection types have multiplied like mosquitoes after a flood for the last twenty years or so as the pace of innovation has accelerated and manufacturers have evolved inputs and outputs as they compete for market dominance.

The HDMI RF modulator is a simple and economical patch for the otherwise intractible problem of new and old tech incompatibilty. Read on to get a quick handle on the HDMI RF modulator, its benefits and downsides, which applications it works for, and which of them is the best.

How An HDMI RF Modulator Works

Before delving into its applications, it’s essential to grasp the fundamentals of HDMI and RF modulation. This section provides a clear explanation of these technologies and their integration in audio-visual setups. The process involves several key steps to facilitate the transmission of digital audio and video content over RF-based distribution networks.

An HDMI RF Modulator transforms digital signals into RF (Radio Frequency) signals through a process involving modulation and encoding. Here is a step-by-step explanation of how this transformation occurs:

1. Input Processing:

• The HDMI RF Modulator starts by receiving digital signals from an HDMI source, such as a gaming console, Blu-ray player, or streaming device. These signals typically include both audio and video data.

1. Digital-to-Analog Conversion:

• The digital signals are converted into analog signals. This conversion is necessary because RF signals are analog in nature. The modulator’s integrated circuitry processes the digital data and converts it into analog form.

1. Encoding:

• The analog signals are then encoded to modulate them onto an RF carrier wave. The modulation process involves varying the properties of the carrier wave in accordance with the analog signal, effectively embedding the digital information into the RF signal.

1. Frequency Modulation

• The RF Modulator selects a specific radio frequency to carry the modulated signal. This frequency can be adjusted to avoid interference with other RF signals in the vicinity. The modulation process also involves adjusting the frequency of the carrier wave in response to changes in the input signal.

1. Channel Assignment

• The modulated RF signal is assigned to a specific channel for transmission over a coaxial cable. This channel assignment is essential for compatibility with standard RF distribution systems. Users can typically tune their receiving devices, such as TVs or set-top boxes, to this specific channel to access the transmitted content.

1. RF Output:

• The final output of the HDMI RF Modulator is an RF signal that carries the encoded and modulated digital information. This signal is ready for transmission over coaxial cables to be distributed to various displays or devices within a network.

In summary, an HDMI RF Modulator transforms digital signals into RF signals by converting the digital data into analog form, encoding it onto an RF carrier wave, and modulating the carrier wave to carry the digital information. The resulting RF signal is then assigned to a specific channel and can be distributed over coaxial cables for broader accessibility within an RF-based network. Let’s take a look at a few applications where the HDMI RF modulator really shines.

HDMI RF Modulator Applications

HDMI RF Modulators come in various types, each catering to specific needs and applications. The most common types include standalone units, rack-mounted modulators, and encoder-modulator combinations.

Standalone HDMI RF Modulators: These inexpensive, compact devices are designed for home use, and are well-suited to applications where a simple conversion between a single digital device and a single RF display is all that’s required.

They often include a single HDMI input and a single RF output. Many also include an HDMI output as well, though this is an optional-use connection. The cost of these devices is generally within the $150 to $500 range.

Multi-Channel RF modulators: These multi-channel devices are designed to be integrated into existing rack systems, providing a more scalable and centralized solution for larger installations with multiple sources and multiple outputs. These rack-mounted units often offer additional features such as remote control, adjustable frequency settings, and enhanced signal management capabilities. The cost of these devices is typically in the $1500 range for low-end units on up to $5000 for professional-quality instruments.

Encoder-modulator combinations: Many HDMI Encoders designed for encoding digital signals for streaming over the Internet also integrate a RF modulating function to allow local display monitoring and to providing flexibility for distributing content over both RF and networked systems simultaneously. The cost of devices ranges from $500 for basic, low-end, home-streaming use to $7500 for professional-quality, multi-channel, low-loss units.

The choice of HDMI RF Modulator depends on the scale and requirements of the specific multimedia distribution system, ranging from simple standalone units for basic setups to more sophisticated rack-mounted or encoder-modulator combinations for larger and more complex installations.

Pros & Cons of HDMI RF Modulators

Pros

An HDMI RF Modulator offers several benefits, making it a versatile device for multimedia distribution in various applications. Firstly, it enables the extension of HDMI signals over longer distances through the use of standard coaxial cables, providing a cost-effective and efficient solution for distributing high-definition multimedia content within a facility or across different rooms. Additionally, the modulator allows compatibility with existing RF distribution systems commonly found in cable television networks, security camera installations, or other RF-based setups. This adaptability facilitates seamless integration into diverse environments, eliminating the need for extensive rewiring or the installation of new infrastructure. The modulator’s ability to convert digital HDMI signals into RF signals also ensures compatibility with a wide range of display devices, including older TVs or monitors that may lack HDMI inputs. Furthermore, the modulator simplifies the distribution of content to multiple displays or devices within a network, offering a centralized solution for multimedia sharing. Overall, an HDMI RF Modulator serves as a bridge between modern HDMI technology and traditional RF distribution systems, providing flexibility, cost-effectiveness, and compatibility in multimedia signal distribution applications.

Cons

While HDMI RF Modulators offer many benefits, there are some downsides associated with their use. One drawback is the potential for signal degradation during the conversion process. The transformation of digital HDMI signals to analog RF signals involves encoding and modulation, which can introduce some loss of signal quality. This loss may manifest as a reduction in image or sound clarity, particularly in comparison to a direct HDMI connection.

Additionally, HDMI RF Modulators may introduce latency in signal transmission, impacting real-time applications such as gaming or streaming. Despite these downsides, HDMI RF Modulators remain valuable for many applications, but users should carefully consider their requirements and potential trade-offs when implementing such systems.

The Best HDMI RF Modulators

Our countless hours of research and testing of the various HDMI RF Modulator models on the market allowed us to narrow the field to a select few models. The manufacturers of these modulators have proven the lasting supreriority of their devices over time, with technology that continues to improve, service when you need it, and easy-to-install applications. We’ve collated this research into bite-size summaries of the three best models below. If you’re interested in reading the in-depth reviews of these and other models, you can find them here among our best hdmi modulators.

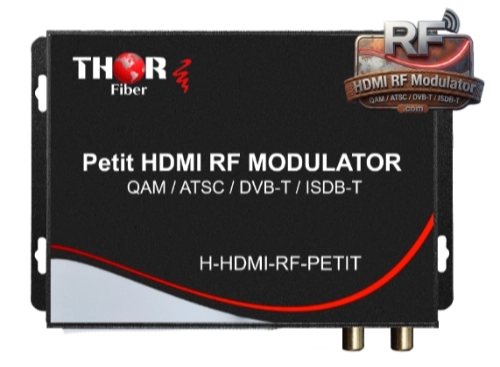

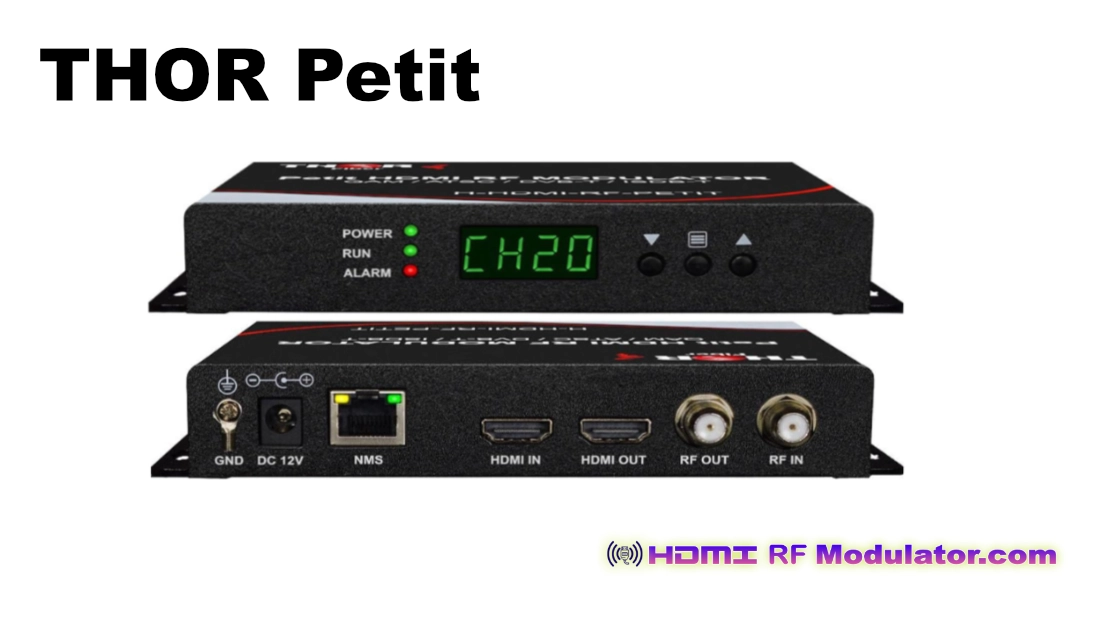

Thor HDMI RF Modulator (our pick)

You’ll get the best video qualityfor your money from the Thor Petit modulator. Simple, user-friendly interface from a well-regarded manufacturer. Buy it on Amazon here.

• Performs very well for the cost
• Good high-def, low-loss video quality.
• Ease of setup.
• Converts HD from any device into DVB-C/T/ATSC/ISDB-T RF output.

ProVideoInstruments VeCoax MiniMod2

Decent video quality with simple installation and easy-to-follow instructions. A respected company with service when you need it. Buy it on Amazon here.

• Easy installation and simple instruction manual.
• Good picture quality, minumum loss.
• No computer needed to program.

Conclusion

In conclusion, the HDMI RF modulator is a continuously-advancing technology that enhances home entertainment connectivity. With its benefits, installation guides, and insights into future trends, users can make informed decisions to optimize their audio-visual setups.
